Running SDL2 and OpenGL in C with WebGL and Express on Netlify

A Comprehensive Guide to using Emscripten to safely add C code to your Express WebApp (We Also Show How to Free Memory Correctly)

This is part of a series on Writing a Video Player and Editor in Pure C.

• Part 1 : SDL and FFMPEG C API (not the commandline)

  • We code parts of a video player in less than 1000 lines of C code.

• Part 2 (we are here) : Emscripten and SDL

  • We learn how to use Emscripten to compile our C app to JavaScript and deploy our app to Netlify.

1.0 Introduction

SDL2 is a multiplatform library for audio and visual programming (SDL Homepage¹) written in C. This is a step-by-step guide to adding WebGL-accelerated graphics via SDL2 in C to your Express Javascript app.

• SDL2 provides OS-dependent stuff (keyboard, mouse, touch, text, audio, networking, etc.)²

• OpenGLES2³ is a 3D programming language for embedded devices. So the code we write in this series runs on Android, IOS, Nintendo Switch, Web, PS Vita et al.

• WebGL permits 3D programming. Emscripten converts OpenGLES2

This is a comprehensive guide to getting SDL2 and OpenGL running (safely) on your website. It is in C, not C++.

2.0 Setting up our Environment

This section covers installing Emscripten, SDL2, Express and Netlify on your computer. I assume you’re running on Linux.

2.1 Installing Emscripten

Official Emscripten installation instructions. Taken from Emscripten.org

We follow the official Emscripten documentation⁴ to get it working on our machine.

Verify the installation using this command:

emcc -v

Note that you need to add Emscripten to your bashrc file to ensure emcc works after you close the current terminal. These are the steps:

2.1.1 Open bashrc in your preferred

gedit ~/.bashrc

2.1.2 Set Emscripten Paths

Modify and append these lines to the bottom of bashrc.

export EMSDK="$HOME/emsdk"  # Adjust if your path is different
export PATH="$EMSDK:$EMSDK/upstream/emscripten:$PATH"
export EMSDK_NODE="$EMSDK/node/14.18.2_64bit/bin"  # Adjust Node version if needed
export PATH="$EMSDK_NODE:$PATH"

2.1.3 Reload bashrc

Save the modified bashrc file and exit. Inside your terminal, reload bashrc using this commmand:

source ~/.bashrc

If everything is working fine then you should see something similar:

Emcc verification

2.2 Installing SDL2

Emscripten comes with preinstalled libraries called Emscripten ports⁵. Lucky us, SDL2 ships with emcc.

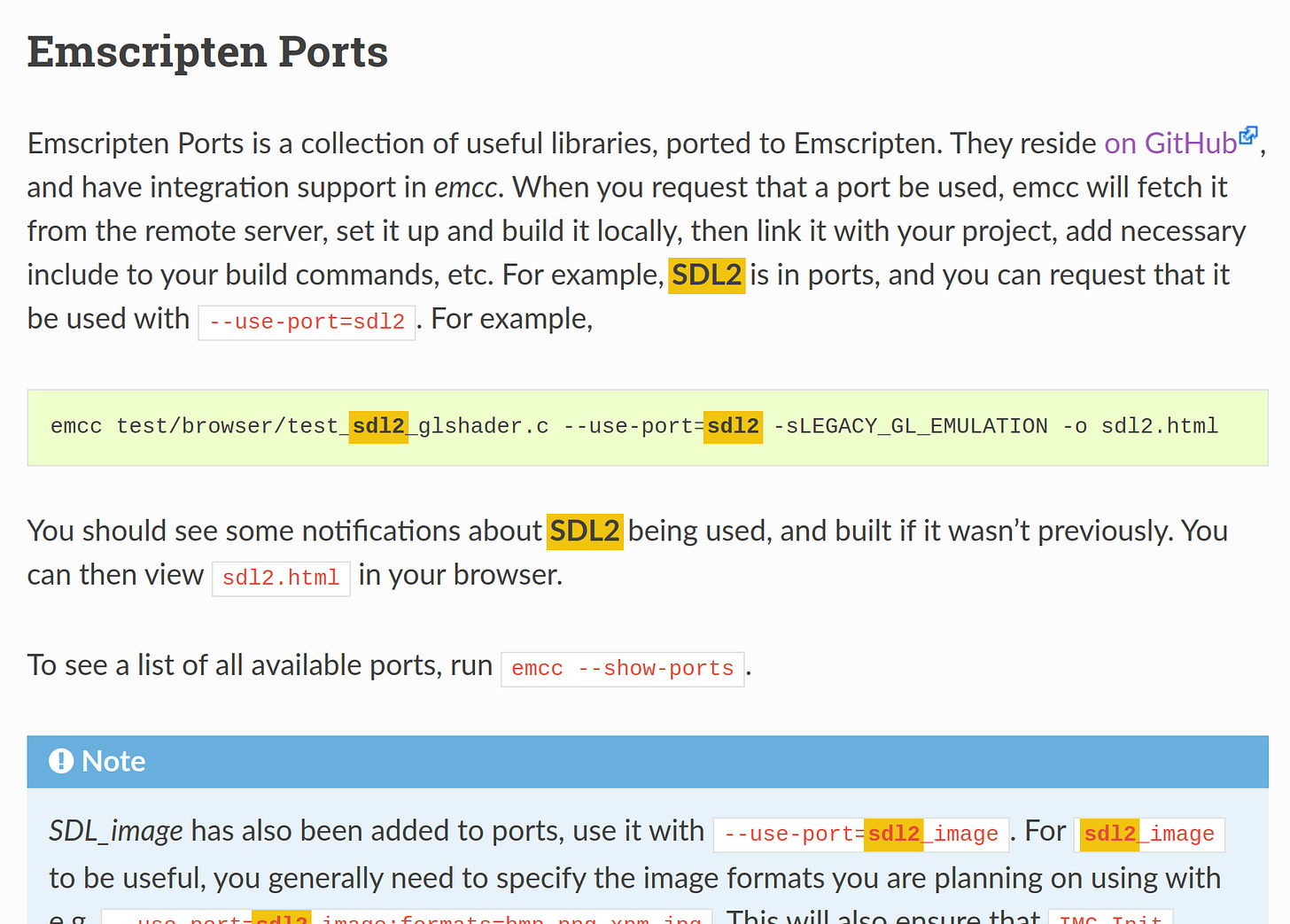

Emscripten Ports official documentation

In the docs, we see that we need to add SDL2 to our emcc build command like this:

emcc test/browser/test_sdl2_glshader.c --use-port=sdl2 -sLEGACY_GL_EMULATION -o sdl2.html

2.3 Installing OpenGL

OpenGL is a 3D graphics library. Emscripten converts OpenGL to WebGL under the hood⁶. The Emscripten documentation recommends using OpenGL ES 2.0/3.0 because it is WebGL friendly⁷.

Emscripten OpenGL Build Commands

Once again, the official documentation introduces Emscripten’s in-build OpenGL support and demonstrates linking commands.

Basic usage looks like this:

emcc main.c -s USE_SDL=2 -s USE_WEBGL2=1 -o game.html

2.4 Installing Netlify

We shall use Netlify to host the html files generated by Emscripten. You can upload to Netlify via GitHub, CLI or regular file upload.

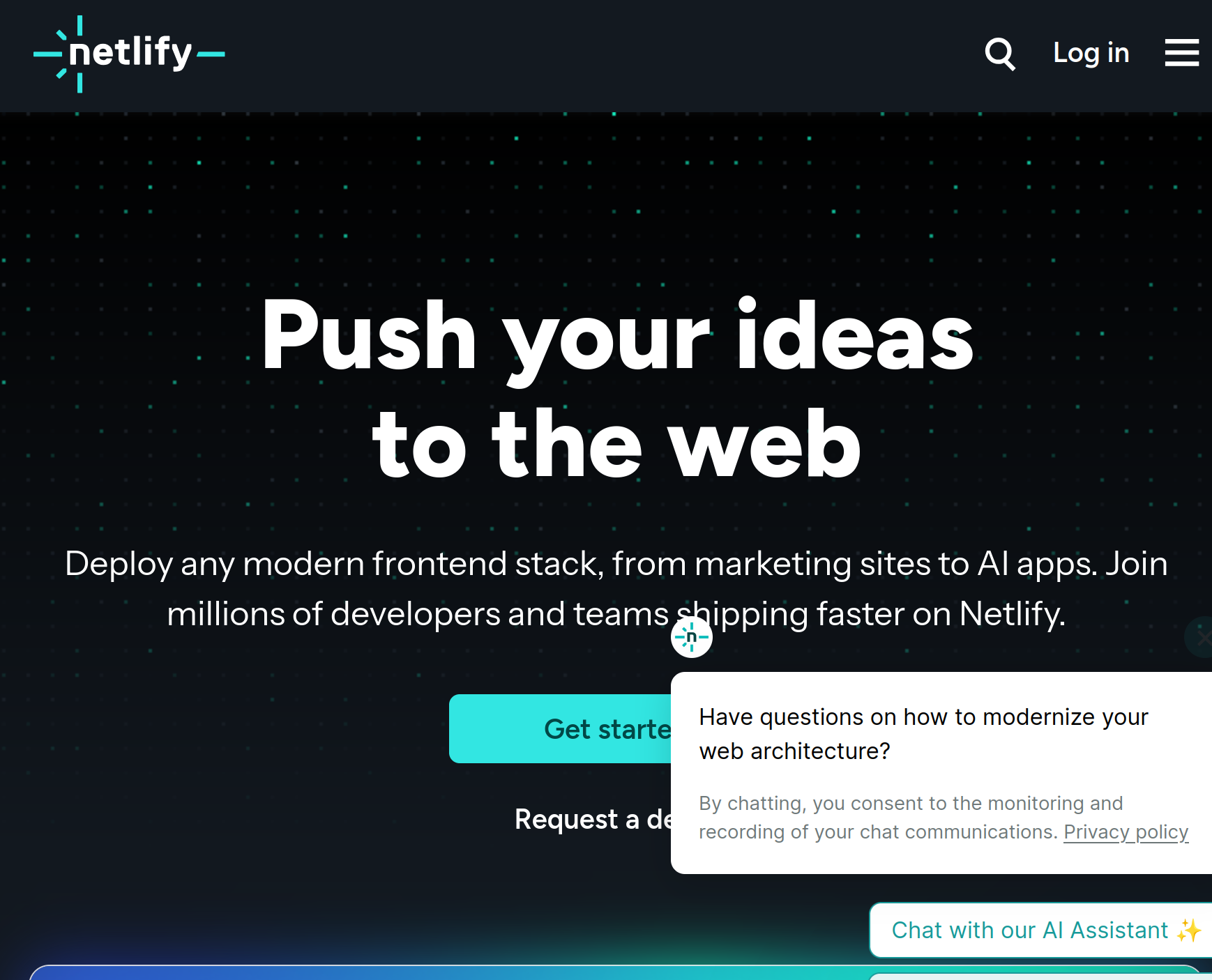

Netlify homepage

All you need to do is log into Netlify and click on the ‘Add New Project’ button. We shall use the ‘Deploy Manually’ button from here.

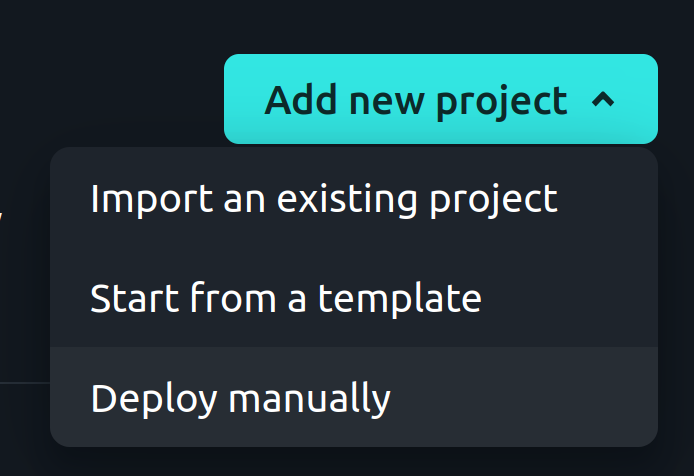

Netlify ‘Deploy Manually’ option

2.5 Installing Node and Express JS

The final step in setting up our environment is installing NodeJS and Express JS. We shall use these backend Javascript libraries in our server.

First, follow the official NodeJS documentation⁸ to install Node

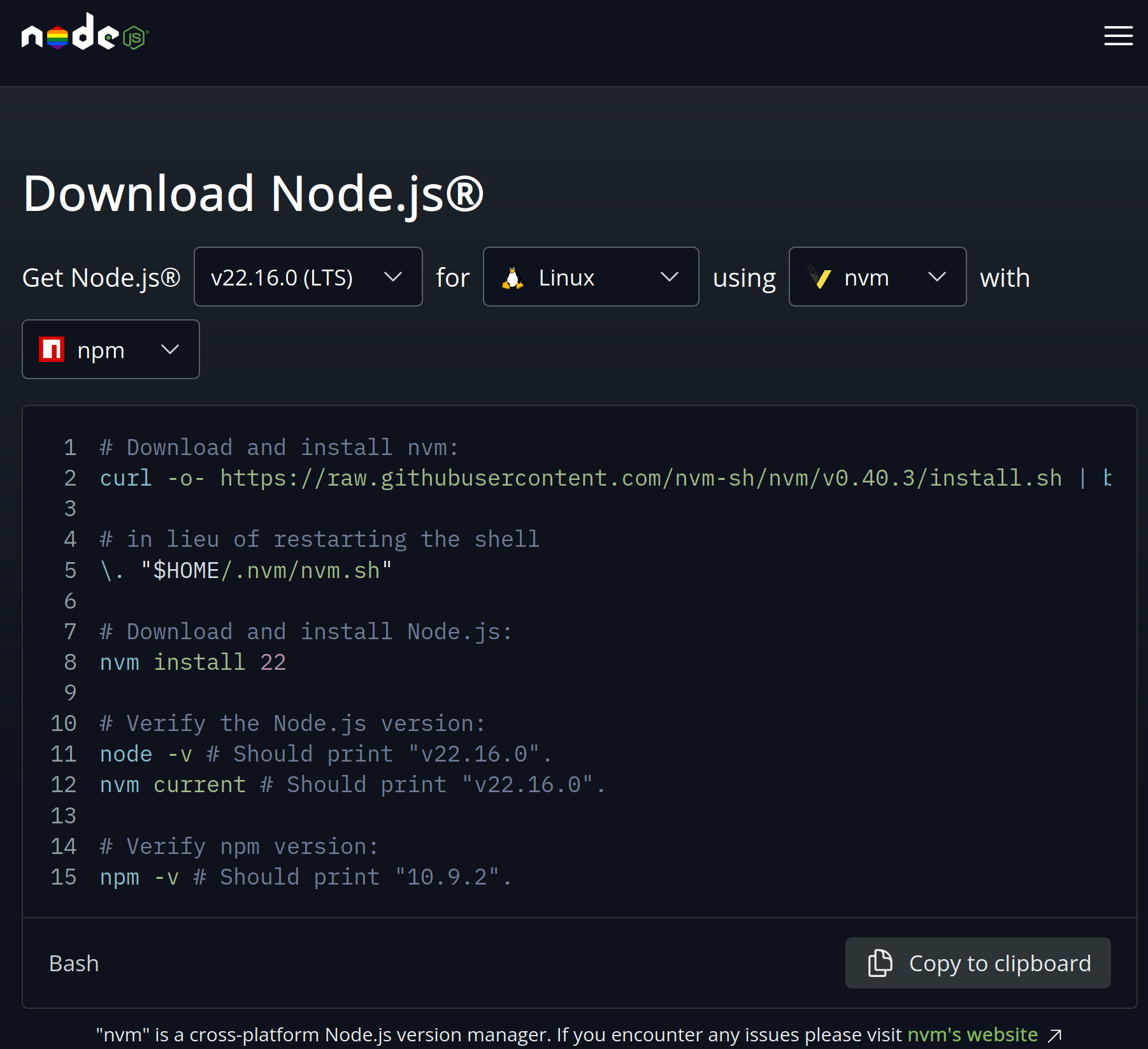

NodeJS official download instructions

Next, we can get Express running using the official Express documentation⁹ as well

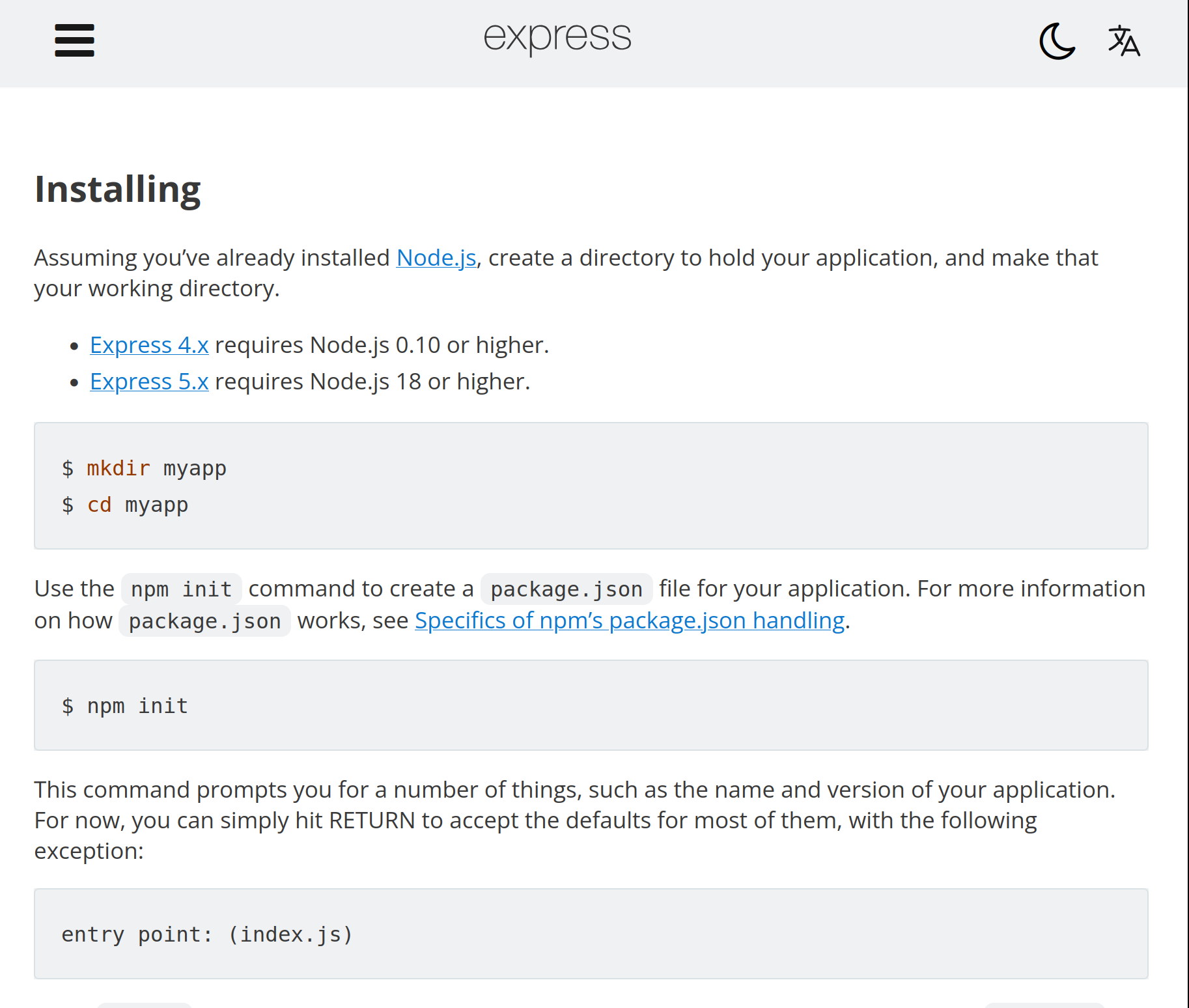

Express official installation instructions

3.0 Rendering a Triangle

This section demonstrates how to render a triangle. First we verify our installation then proceed to working with SDL and OpenGL.

3.1 Verify Our Installation

In this section, we shall verify everything is working. First, create an empty C file called HelloTriangle.c

Then, in the code below, we include our SDL2, OpenGL headers, and add our main function.

//SDL2 and OpenGLES2
//Run : emcc  HelloTriangle.c -s USE_SDL=2 -s FULL_ES2=1 -s WASM=1 -o HelloTriangle.html

#ifdef __EMSCRIPTEN__
#include <emscripten.h>
#include <SDL.h>
#include <SDL_opengles2.h>
#else
#include <SLD2/SDL.h>
#include <SDL2/SDL_opengles2.h>
#endif


int main()
{
	int windowWidth = 512;
	int windowHeight= 512;
	return 0;
}

We compile using the command:

emcc  HelloTriangle.c -s USE_SDL=2 -s FULL_ES2=1 -s WASM=1 -o HelloTriangle.html

If it is your first time running the command, you’ll observe that Emscripten first downloads some libraries:

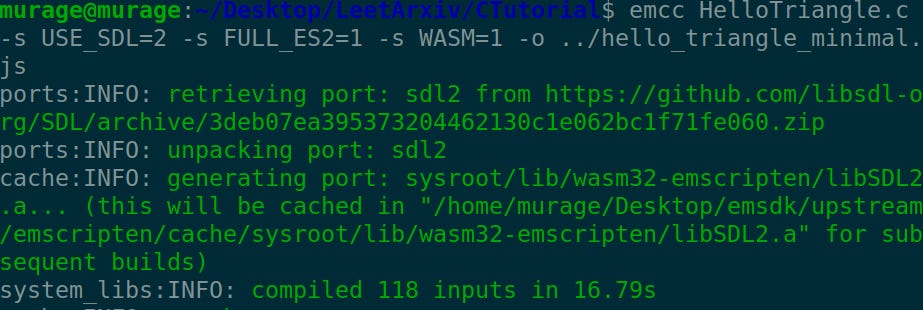

Emscripten fetching libraries

The first compilation may take a while but the subsequent compilations will be fast.

If there are no errors then look inside the directory to observe 3 new files:

Files Generated by Emscripten

3.2 SDL2 and OpenGL Primitives

This section introduces the SDL2 and OpenGL API. First, we draw a white background to ensure our setup is working. Then we proceed to draw an actual triangle.

3.2.1 Drawing a White Background

We start working with SDL2 and OpenGL in this section.

Here’s a summary of the functions introduced in this section:

• First, we create a window using SDL_CreateWindow¹⁰ then free the memory using SDL_DestroyWindow.

• Second, we introduce SDL_LogError¹¹ to output errors to our console.

• Third, we write some boilerplate to initialize OpenGL.



  Initialize OpenGL Boilerplate

• Fourth, we use SDL_GL_CreateContext12 to create an OpenGL context and we use SDL_GL_DeleteContext¹³ to free our memory.

• Fifth, we use glClearColor14 to set the background color to white. In the linked docs, we see that this function only takes floats between 0 and 1.

• Sixth, after setting the buffer color we need to clear the buffers using glClear¹⁵ function.

• Seventh, we get OpenGL’s window actual drawable size to prevent excessive DPI scaling using SDL_GL_GetDrawableSize¹⁶ and change windowWidth and windowHeight to these values.

• Eighth, we set our OpenGL view to the center of our screen using glViewport17

• Ninth, we create a MainLoop function that keeps our window open inside the browser and refreshes. We just repeat all the code we’ve written before. The only new function is SDL_GL_SwapWindow18 which updates our window with the OpenGL render:

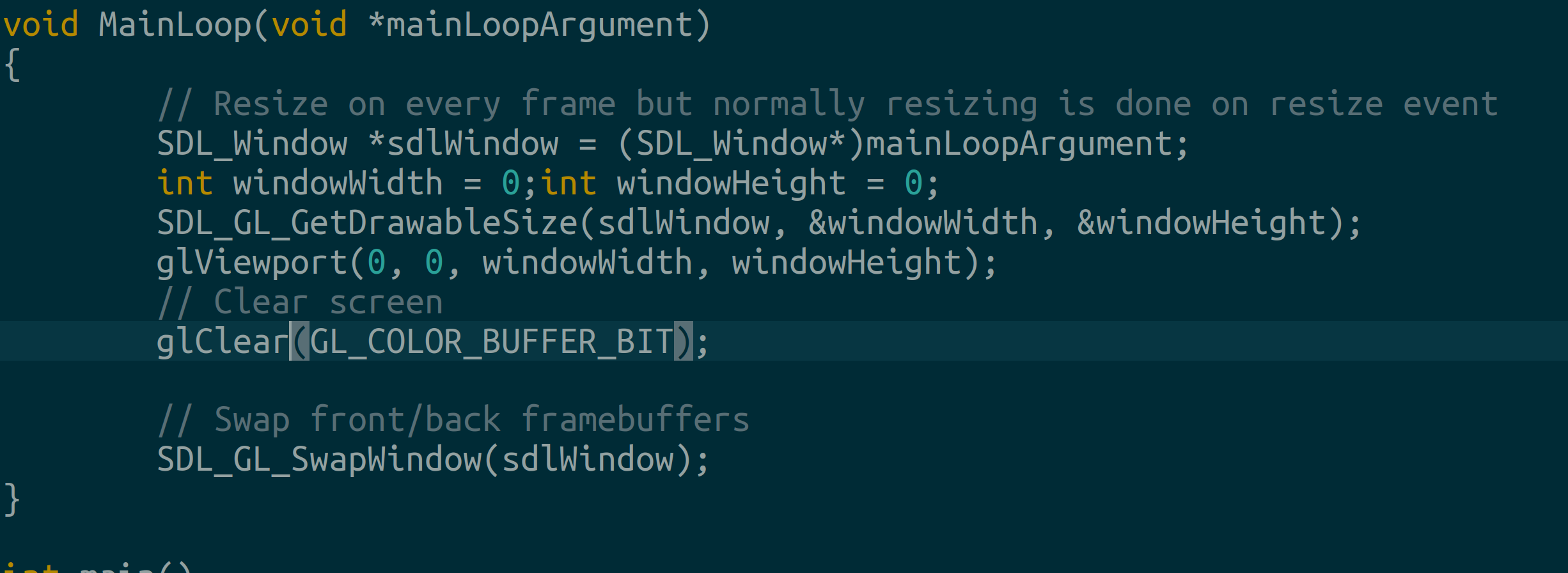

  Our MainLoop is the code we wrote before

• Finally, we use the emscripten_set_main_loop_arg19 function to run our code in the browser using Emscripten. According to the linked documentation, we set fps to 0 so the browser can handle this.

All our code in a single file:

//SDL2 and OpenGLES2
//Run : emcc  HelloTriangle.c -s USE_SDL=2 -s FULL_ES2=1 -s WASM=1 -o HelloTriangle.html
//Preview : emrun HelloTriangle.html

#ifdef __EMSCRIPTEN__
#include <emscripten.h>
#include <SDL.h>
#include <SDL_opengles2.h>
#else
#include <SLD2/SDL.h>
#include <SDL2/SDL_opengles2.h>
#endif


void MainLoop(void *mainLoopArgument)
{
	// Resize on every frame but normally resizing is done on resize event
	SDL_Window *sdlWindow = (SDL_Window*)mainLoopArgument;
	int windowWidth = 0;int windowHeight = 0;
	SDL_GL_GetDrawableSize(sdlWindow, &windowWidth, &windowHeight);
	glViewport(0, 0, windowWidth, windowHeight);
	// Clear screen
	glClear(GL_COLOR_BUFFER_BIT);

	// Swap front/back framebuffers
	SDL_GL_SwapWindow(sdlWindow);
}

int main()
{
	int windowWidth = 512;
	int windowHeight= 512;
	char *windowName = "HelloTriangle";

	//Create a new window
	SDL_Window *sdlWindow = SDL_CreateWindow(windowName, SDL_WINDOWPOS_CENTERED, SDL_WINDOWPOS_CENTERED,windowWidth, windowHeight, SDL_WINDOW_OPENGL | SDL_WINDOW_RESIZABLE | SDL_WINDOW_SHOWN);
	if(sdlWindow == NULL){SDL_LogError(SDL_LOG_CATEGORY_ERROR, "Could not create window: %s\n", SDL_GetError());exit(1);}

	//Create OpenGLES2 context inside SDL Window
	SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 2);
	SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 0);
	SDL_GL_SetSwapInterval(1);
	SDL_GL_SetAttribute(SDL_GL_DOUBLEBUFFER, 1);
	SDL_GL_SetAttribute(SDL_GL_DEPTH_SIZE, 24);

	//Create OpenGL Context
	SDL_GLContext openGLContext = SDL_GL_CreateContext(sdlWindow);
	if(openGLContext == NULL){SDL_LogError(SDL_LOG_CATEGORY_ERROR, "Could not create OpenGL Context: %s\n", SDL_GetError());exit(1);}
	printf("INFO: GL version: %s\n", glGetString(GL_VERSION));


	//OpenGL Set Background Color to white
	glClearColor(1.0f, 1.0f, 1.0f, 1.0f);

	//Call GL Clear
	glClear(GL_COLOR_BUFFER_BIT);

	//Change windowWidth and windowHeight and to OpenGL window's actual size in pixels
	SDL_GL_GetDrawableSize(sdlWindow, &windowWidth, &windowHeight);
	printf("INFO: GL window size = %dx%d\n", windowWidth, windowHeight);

	//Set Open GL Viewport
	glViewport(0, 0, windowWidth, windowHeight);

	//Define our sdlWindow as the argument for our main loop
	void *mainLoopArgument = sdlWindow;
	//Start Emscripten main loop
	#ifdef __EMSCRIPTEN__
		int fps = 0;
		emscripten_set_main_loop_arg(MainLoop, mainLoopArgument, fps, true);
	#else
		while(true)
		{
			MainLoop(MainLoopArgument);
		}
	#endif


	//Destroy OpenGL Context
	SDL_GL_DeleteContext(openGLContext);
	//Destroy Window
	SDL_DestroyWindow(sdlWindow);
	//End SDL session
	SDL_Quit();
	return 0;
}

/*

*/

Once again, we compile using the command:

emcc HelloTriangle.c -s USE_SDL=2 -s FULL_ES2=1 -s WASM=1 -o HelloTriangle.html

This time however, we shall preview our HTML. Use this command to open the generated HTML file:

emrun HelloTriangle.html

If everything is working then your browser should open to this white screen with a console:

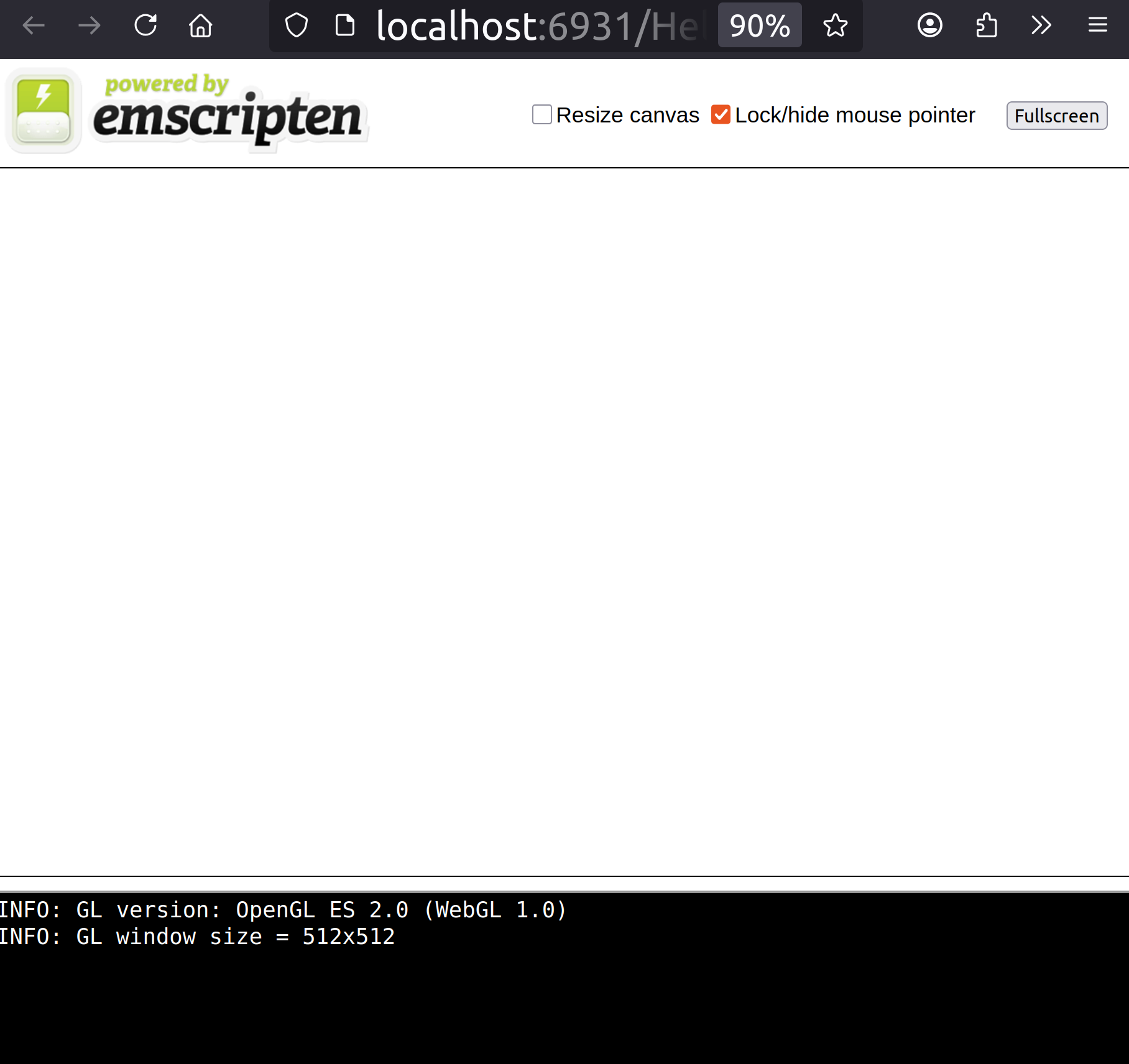

White screen and console output in HTML file preview

Try changing the background color to black :)

3.2.2 Drawing a Triangle

Now, we have enough code to draw a triangle. To proceed, we need to write shaders in the OpenGL Programming Language.

At the very top of our file, we append code for out vertex and pixel shaders

Vertex and pixel shader code

Next, we write a function to initialize our shaders and free them afterwards. It’s all boilerplate:

Initialize, attach and detach shaders

Next, we create a function to Initialize our Triangle geometry:

InitializeTriangleGeometry Function

Then, we’ll add this line to our MainLoop function to refresh the triangle after clearing our screen:

// Draw the vertex buffer
glDrawArrays(GL_TRIANGLES, 0, 3);

Finally, right before our main loop, we need to initialize our shaders and geometries:

// Initialize shader and geometry
GLuint shaderProgram = InitializeShader();
InitializeTriangleGeometry(shaderProgram);


//Destroy shaderProgram
glDeleteProgram(shaderProgram);

In a single file, our code looks like this:

//SDL2 and OpenGLES2
//Run : emcc  HelloTriangle.c -s USE_SDL=2 -s FULL_ES2=1 -s WASM=1 -o HelloTriangle.html
//Preview : emrun HelloTriangle.html

#ifdef __EMSCRIPTEN__
#include <emscripten.h>
#include <SDL.h>
#include <SDL_opengles2.h>
#else
#include <SLD2/SDL.h>
#include <SDL2/SDL_opengles2.h>
#endif

// Vertex shader
const GLchar* vertexSource =
"attribute vec4 position;                      \n"
"varying vec3 color;                           \n"
"void main()                                   \n"
"{                                             \n"
"    gl_Position = vec4(position.xyz, 1.0);    \n"
"    color = gl_Position.xyz + vec3(0.5);      \n"
"}                                             \n";

// Fragment/pixel shader
const GLchar* fragmentSource =
"precision mediump float;                     \n"
"varying vec3 color;                          \n"
"void main()                                  \n"
"{                                            \n"
"    gl_FragColor = vec4 ( color, 1.0 );      \n"
"}                                            \n";

GLuint InitializeShader()
{
	// Create and compile vertex shader
	GLuint vertexShader = glCreateShader(GL_VERTEX_SHADER);
	glShaderSource(vertexShader, 1, &vertexSource, NULL);
	glCompileShader(vertexShader);

	// Create and compile fragment shader
	GLuint fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
	glShaderSource(fragmentShader, 1, &fragmentSource, NULL);
	glCompileShader(fragmentShader);

	// Link vertex and fragment shader into shader program and use it
	GLuint shaderProgram = glCreateProgram();
	glAttachShader(shaderProgram, vertexShader);
	glAttachShader(shaderProgram, fragmentShader);
	glLinkProgram(shaderProgram);
	glUseProgram(shaderProgram);

	// Cleanup: Detach and delete shaders (they're now part of the program)
	glDetachShader(shaderProgram, vertexShader);
	glDetachShader(shaderProgram, fragmentShader);
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);
	return shaderProgram;
}

void InitializeTriangleGeometry(GLuint shaderProgram)
{
	// Create vertex buffer object and copy vertex data into it
	GLuint vbo;
	glGenBuffers(1, &vbo);
	glBindBuffer(GL_ARRAY_BUFFER, vbo);
	//Triangle Vertices
	GLfloat vertices[] =
	{
	0.0f, 0.5f, 0.0f,
	-0.5f, -0.5f, 0.0f,
	0.5f, -0.5f, 0.0f
	};
	glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);

	// Specify the layout of the shader vertex data (positions only, 3 floats)
	GLint posAttrib = glGetAttribLocation(shaderProgram, "position");
	glEnableVertexAttribArray(posAttrib);
	glVertexAttribPointer(posAttrib, 3, GL_FLOAT, GL_FALSE, 0, 0);
}
void MainLoop(void *mainLoopArgument)
{
	// Resize on every frame but normally resizing is done on resize event
	SDL_Window *sdlWindow = (SDL_Window*)mainLoopArgument;
	int windowWidth = 0;int windowHeight = 0;
	SDL_GL_GetDrawableSize(sdlWindow, &windowWidth, &windowHeight);
	glViewport(0, 0, windowWidth, windowHeight);

	// Clear screen
	glClear(GL_COLOR_BUFFER_BIT);

	// Draw the vertex buffer
	glDrawArrays(GL_TRIANGLES, 0, 3);

	// Swap front/back framebuffers
	SDL_GL_SwapWindow(sdlWindow);
}

int main()
{
	int windowWidth = 512;
	int windowHeight= 512;
	char *windowName = "HelloTriangle";

	//Create a new window
	SDL_Window *sdlWindow = SDL_CreateWindow(windowName, SDL_WINDOWPOS_CENTERED, SDL_WINDOWPOS_CENTERED,windowWidth, windowHeight, SDL_WINDOW_OPENGL | SDL_WINDOW_RESIZABLE | SDL_WINDOW_SHOWN);
	if(sdlWindow == NULL){SDL_LogError(SDL_LOG_CATEGORY_ERROR, "Could not create window: %s\n", SDL_GetError());exit(1);}

	//Create OpenGLES2 context inside SDL Window
	SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 2);
	SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 0);
	SDL_GL_SetSwapInterval(1);
	SDL_GL_SetAttribute(SDL_GL_DOUBLEBUFFER, 1);
	SDL_GL_SetAttribute(SDL_GL_DEPTH_SIZE, 24);

	//Create OpenGL Context
	SDL_GLContext openGLContext = SDL_GL_CreateContext(sdlWindow);
	if(openGLContext == NULL){SDL_LogError(SDL_LOG_CATEGORY_ERROR, "Could not create OpenGL Context: %s\n", SDL_GetError());exit(1);}
	printf("INFO: GL version: %s\n", glGetString(GL_VERSION));


	//OpenGL Set Background Color to white
	glClearColor(1.0f, 1.0f, 1.0f, 1.0f);

	//Call GL Clear
	glClear(GL_COLOR_BUFFER_BIT);

	//Change windowWidth and windowHeight and to OpenGL window's actual size in pixels
	SDL_GL_GetDrawableSize(sdlWindow, &windowWidth, &windowHeight);
	printf("INFO: GL window size = %dx%d\n", windowWidth, windowHeight);

	//Set Open GL Viewport
	glViewport(0, 0, windowWidth, windowHeight);

	//Define our sdlWindow as the argument for our main loop
	void *mainLoopArgument = sdlWindow;

	// Initialize shader and geometry
	GLuint shaderProgram = InitializeShader();
	InitializeTriangleGeometry(shaderProgram);
	//Start Emscripten main loop
	#ifdef __EMSCRIPTEN__
		int fps = 0;
		emscripten_set_main_loop_arg(MainLoop, mainLoopArgument, fps, true);
	#else
		while(true)
		{
			MainLoop(MainLoopArgument);
		}
	#endif


	//Destroy shaderProgram
	glDeleteProgram(shaderProgram);
	//Destroy OpenGL Context
	SDL_GL_DeleteContext(openGLContext);
	//Destroy Window
	SDL_DestroyWindow(sdlWindow);
	//End SDL session
	SDL_Quit();
	return 0;
}

If you have no errors then you should observe this triangle after compilation and preview:

Triangle against white background

4.0 Deploying To Netlify

Next, we want to deploy our HelloTriangle.html file to Netlify. (I’m still figuring this out lol)

Footnotes

1. SDL2 Homepage. Link.

2. Erik Larsen. Link.

3. OpenGL ES Overview. Link.

4. Emscripten Documentation. Link.

5. Emscripten Ports. Link.

6. Stepanyan Ingvar. Drawing to Canvas in Emscripten. Link.

7. OpenGL support in Emscripten. Link.

8. NodeJS Download Documentation. Link.

9. Express Installation Documentation. Link.

10. SDL_CreateWindow Documentation. Link.

11. SDL_LogError Documentation. Link.

12. SDL_GL_CreateContext Documentation. Link.

13. SDL_GL_DeleteContext Documentation. Link.

14. glClearColor Documentation. Link.

15. glClear Documentation. Link.

16. SDL_GL_GetDrawableSize Documentation. Link.

17. glViewport Documentation. Link.

18. SDL_GL_SwapWindow Documentation. Link.

19. emscripten_set_main_loop_arg Documentation. Link.
